High Capacity Salt Brine Production System, Stainless Steel

Price: *Product only available via Quote Request
SKU
High Capacity Salt Brine Production System, Stainless Steel

Request a Quote

To receive more information or request a quote, select the button below and complete our form.

The Stainless Steel Salt Brine Production unit is constructed in two-parts. Intended to be used as a generator of quality salt brine. The brine is then used as a pre-wetting, anti-icing, and/or a de-icing agent on pavement or roadways for the municipal and highway markets, as well as for the treatment of commercial parking lots.

With an on-board brine storage capacity of 1,400 gallons and brine manufacturing capabilities of up to 5,000 gallons/hour. This brine production system may be used in all applications, including bulk storage. The up-flow design allows the HCSB1400-SS to generate a purer brine with consistent salinity that cannot be matched.

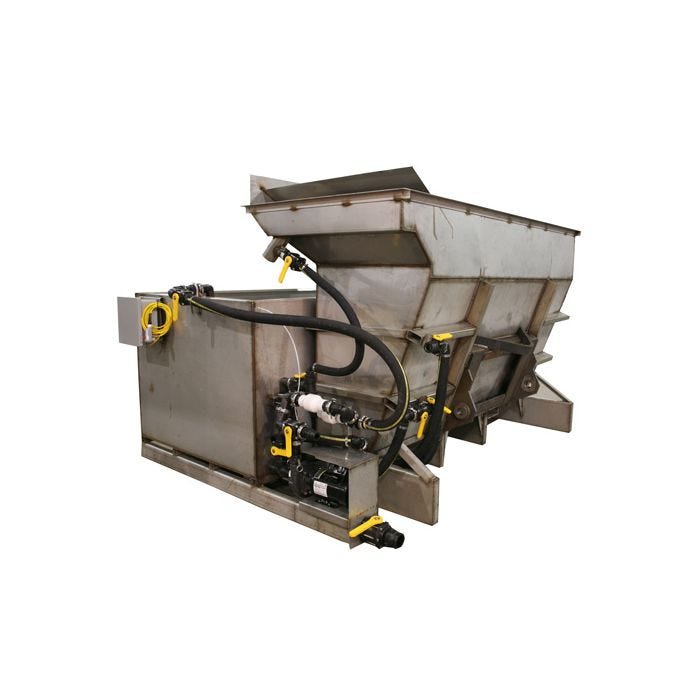

Model HCSB1400-SS is also available with an optional incorporated equipment coupler attachment (shown in photo). This coupler works well for fast and simple clean out of any residual debris from the salt hopper and allows for ease in moving of the unit using a front-end loader with an equipment coupler.

* Representative Image
  • Up-Flow Design
    Single pass saturation ensures consistent salinity, purer brine and less sediment
  • Reduces Salt Brine Storage Requirements
    Produce up to 5,000 GPH with 1,400 Gallon on-board brine storage
  • Full Range Salinity Adjustments
    Easily produce salt brine to exact salinity needed
  • Tethered Remote Control
    Control unloading system on/off from a distance of up to 15 feet
  • Integrated Ground Fault Protection
    Electric shock and overload protection
  • On-Board Storage Overflow Protection
    Automated full switch for shut-off when the storage is full in continuous throughput production
  • Construction Material
    • Salt Hopper Tank............10-GA 304 Stainless Steel
    • Salt Brine Tank................12-GA 304 Stainless Steel
  • Brine Production Rate...............5,000 GPH
    • (Provided adequate water supply is available)
  • Brine Pump Output...................165 GPM @ 30’ Head
    (3HP-230 VAC TEFC Stainless Steel Pump)
  • Salt Hopper Tank Capacity........5.25 Cubic Yards
  • Operating Voltage.....................230 VAC @ 20 AMP
  • Dimensions...............................99” W x 134” L x 89” H
  • Shipping Weight (Approx).........3,000 lbs
  • Single-Phase Power Requirements...............208 VAC 13.1 FLA @ 60 Hz
                                                                           230 VAC 12.3 FLA @60 Hz
  • Three-Phase Power Requirements..............208 VAC 8.5 FLA @ 60 Hz
                                                                         230 VAC 8 FLA @60 Hz
